CRANLIK 2000 Kg Magnetic Lifter PML-2000

47,520 (with GST)

Check Delivery Time //

Offers & Discounts

TOOLZ100
Get Flat Rs. 100 off on your First Order. Use the code at the time of Checkout.

T4i Benefits

GST Invoice Available
Secure Payments
Best Price Guarantee

Delivery within 4-6 Days

Lifting Capacity: 2000 Kg or 2 Ton

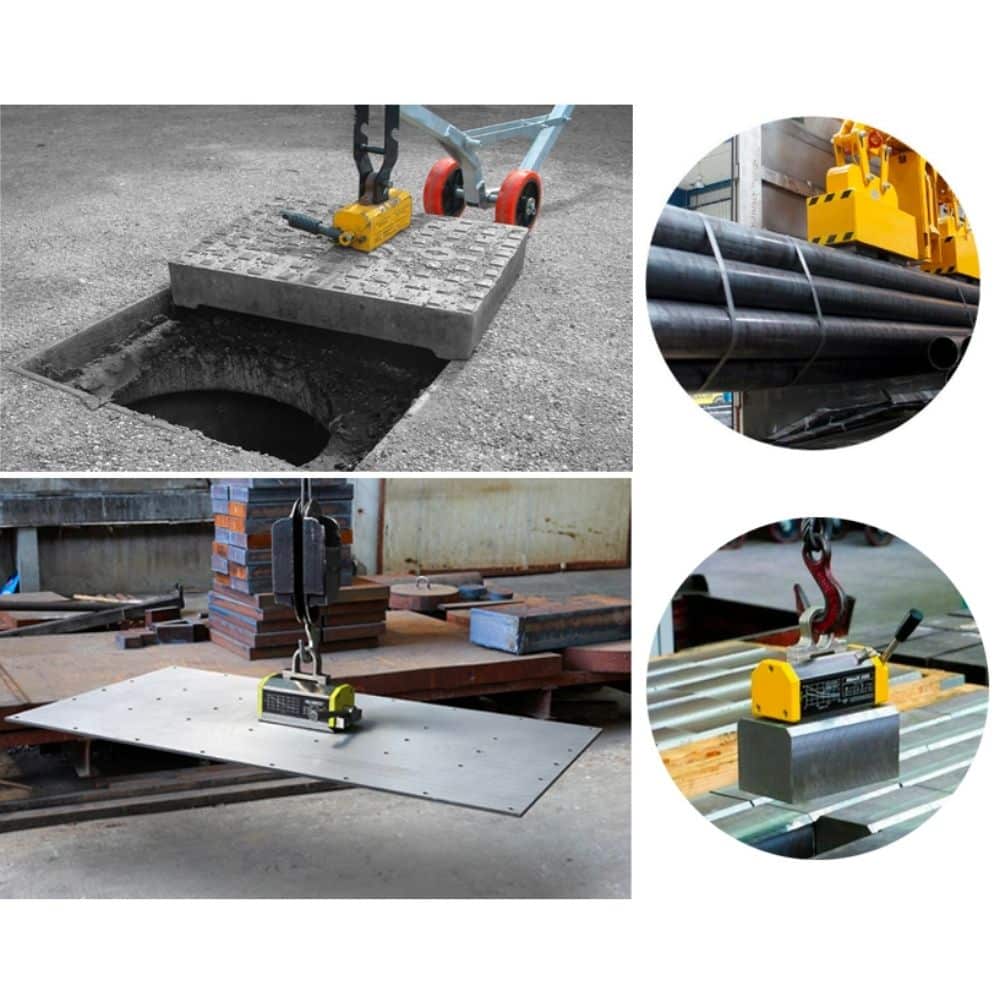

Permanent Magnetic Lifters are mainly used to lift steel plates, blocks, press moulds etc. and load / unload in machines during handling operation. They can hoist moving iron blocks and other magnetic material. They are easy to operation and safe to handle and hence are widely used as lifting devices in factories, docks, warehouses and transportation industries. By using them, you can improve your working condition and increase your working efficiency.

SKU T4I.MTH.00056 Category Tags ,
Product Data
Brand

CRANLIK

Pack Quantity

1

Model Number

PML-2000

Load Capacity (in Kgs)

2000

Pull Strength (in KgF)

6000

Dimensions (in mm)

LxBxHxR: 450x230x210x420

Description

Permanent Magnetic Lifters are mainly used to lift steel plates, blocks, press moulds etc. and load / unload in machines during handling operation. They can hoist moving iron blocks and other magnetic material. They are easy to operation and safe to handle and hence are widely used as lifting devices in factories, docks, warehouses and transportation industries. By using them, you can improve your working condition and increase your working efficiency.

Features:

  • Zero electricity required
  • Forged hook for high mechanical strength and durability
  • Precision machined assembly block in single piece to enhance efficiency
  • Designed for safety and light weight
  • Full proof locking system with an easy to use “on” and “off” lever
  • 3 times rated capacity factor of safety to meet the safety standards as per international standards for under the hook devices
  • No Maintenance and Operating cost
  • No damage to the work piece being lifted
  • Very Compact

Benefits:

  • Lifting Magnets use space more effectively. Eliminates the need to gauge and increase stacking height
  • As less as one operator can move large and heavy work piece safely and easily using Magnetic Lifters
  • Lifting Magnets saves labour and time – improves productivity

Construction:

Permanent Magnet Lifters have strong magnetic field path produced by NdFeB Magnetic materials. “On” and “Off” of the magnetic path is controlled by turning the lever manually. There are shackles on the top of Magnetic Lifter for lifting.

Operating Instructions:

  • The work piece surface (magnetic ferrous surface) and magnet pole surface must be clean and smooth to achieve maximum efficiency. Ground and machined surface are ideal but a good clean surface on a ferrous or casting is acceptable provided a sufficiently flat area available for good magnetic contract with the work piece
  • There should be no air gap / inclusions between the magnet pole and the job surface
  • Place the magnet on the ferrous surface. Unlock the lever by pulling it out and then turn it to the “ON“ position. Once it is made “ON”, lock it by releasing it. For making it “OFF”, please follow the similar procedure. (Do not place on wooden surface OR non-magnetic surface – it will not be possible to operate Lever to “ON” position)
  • Move the load smoothly, avoid shocks and collisions
  • To place / drop the lifted material, operate the lever to the “OFF” position

When not in use:

  • Apply Grease / Oil on Magnetic Poles surface to prevent it from rusting
  • Place it on thick wooden plank to safeguard its Magnetic poles from any damages, scratches etc.

Safety Instructions:

  • Place the magnet on the Ferrous Surface in “OFF” position and then make it “ON”. Do not make it ON without keeping it on ferrous surface
  • The magnet is to be placed on the center, i.e. centering to the center of gravity of the load and then lift
  • While handling the load, no person should be allowed in the immediate danger zone
  • Ensure that the lever is made “OFF” after resting the load at desired place in balance position
